Lockwood Induro Multi-Point Lock Bodies – 2 Point & 4 Point, Long and Short Throw Options

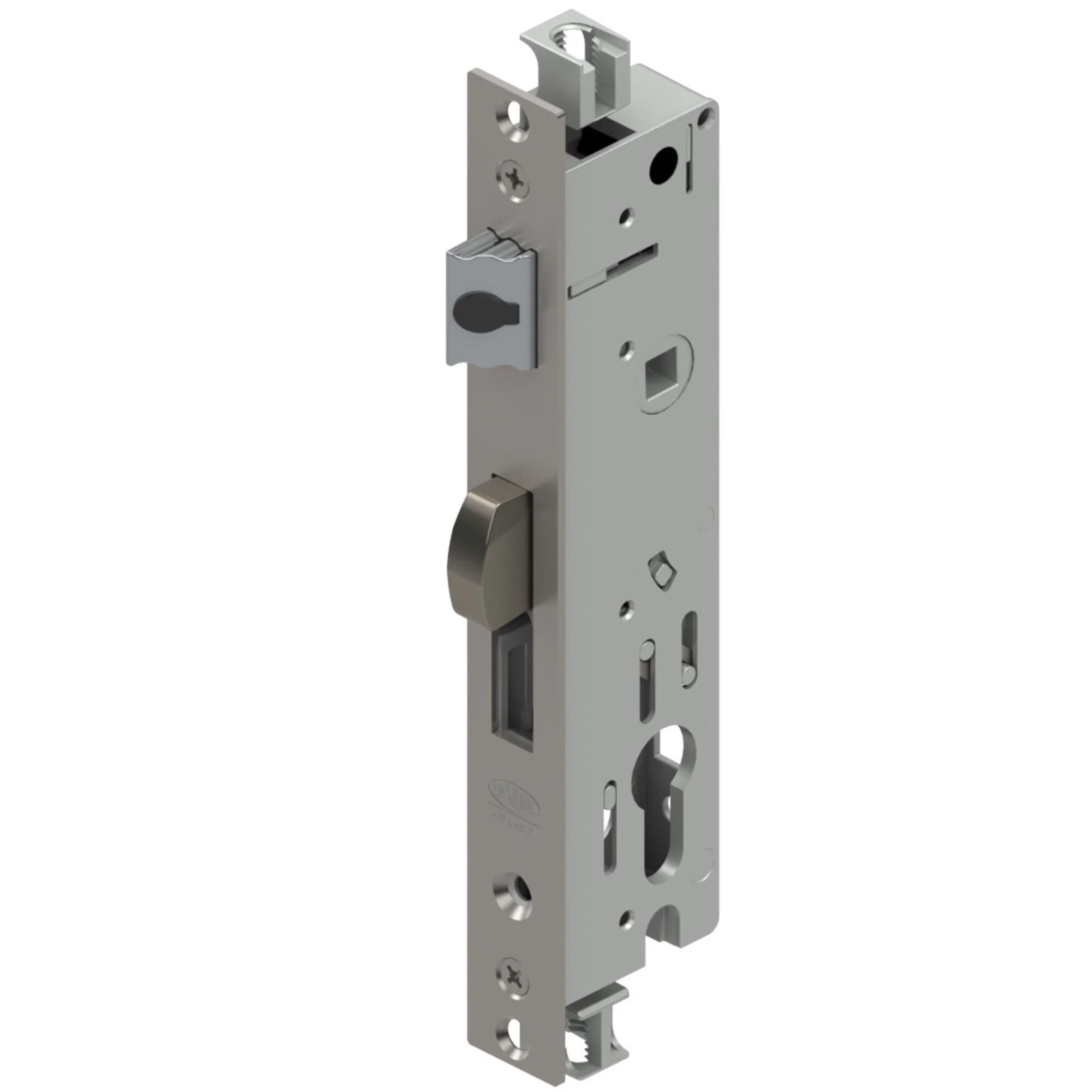

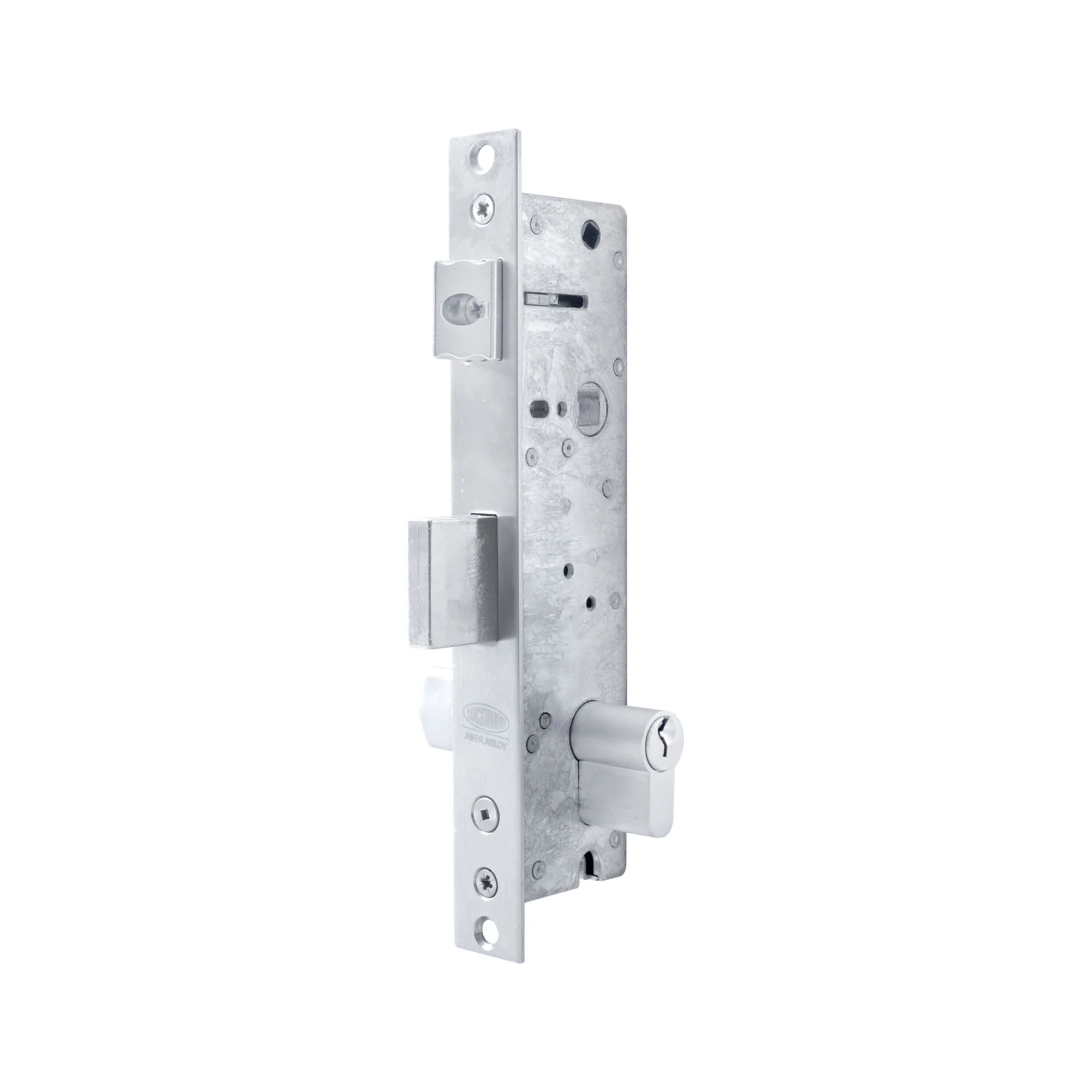

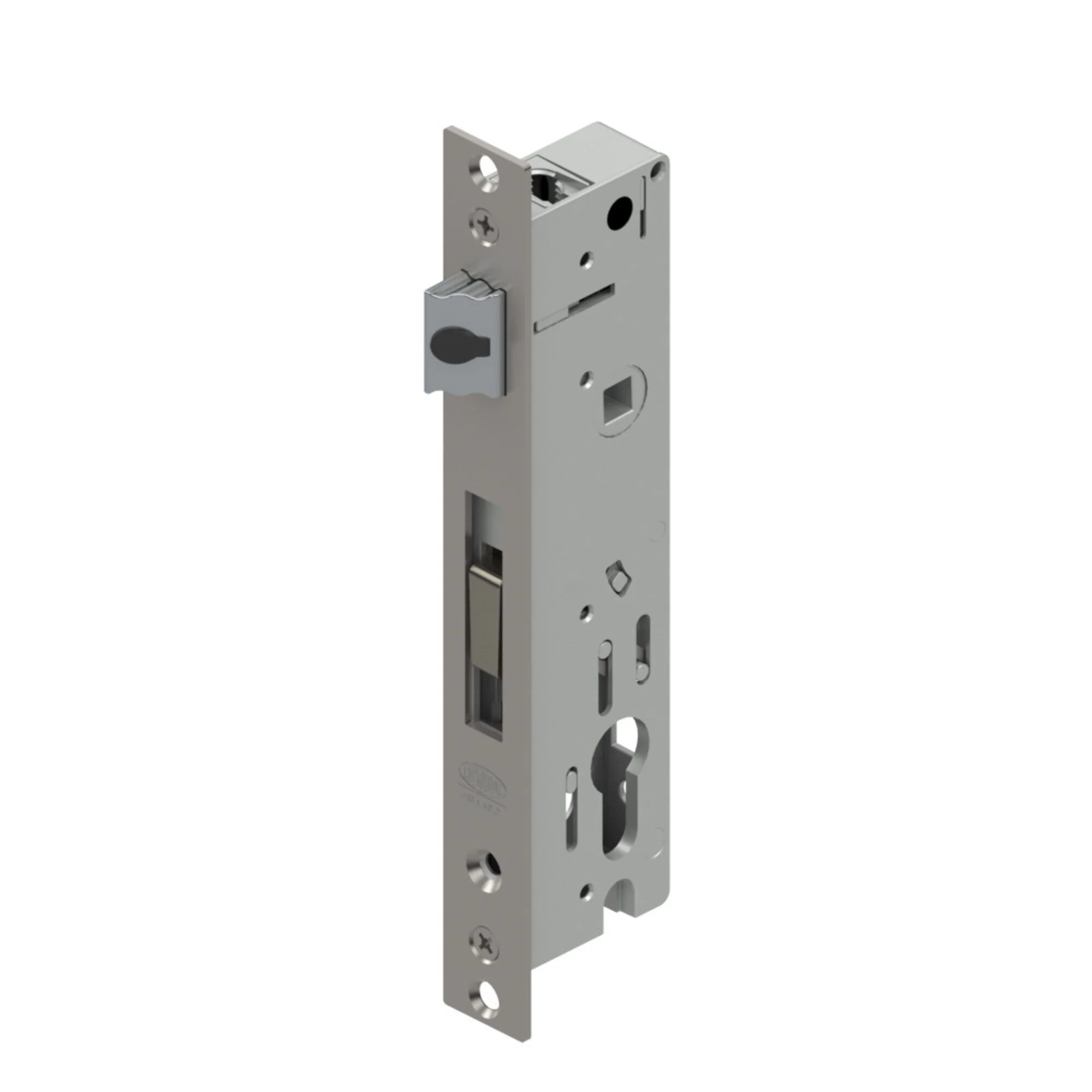

Lockwood Induro Mortice Lock

The Lockwood Induro Mortice Lock is a versatile, easy-to-install locking solution designed for hinged residential aluminium and timber doors. Developed as the direct replacement for the Lockwood Optimum Mortice Lock, Induro delivers upgraded performance and durability while retaining the same installation footprint, making it ideal for both new installations and retrofit applications.

Features

• Designed to suit hinged residential aluminium and timber door applications

• Direct replacement for Lockwood Optimum Mortice Lock, maintaining identical installation methods and footprint

• Selectable bolt throw with simple selector switch, allowing choice between long throw (24 mm) and short throw (13 mm)

• Two points of locking via latch and deadbolt for improved door security

• Reversible latch bolt enables easy, field-selectable handing

• Durable internal mechanism with stainless steel faceplate for long-term reliability

• Accepts both 7.6 mm and 8 mm spindles for broad hardware compatibility

• Latch can be deadlocked by key for added safety

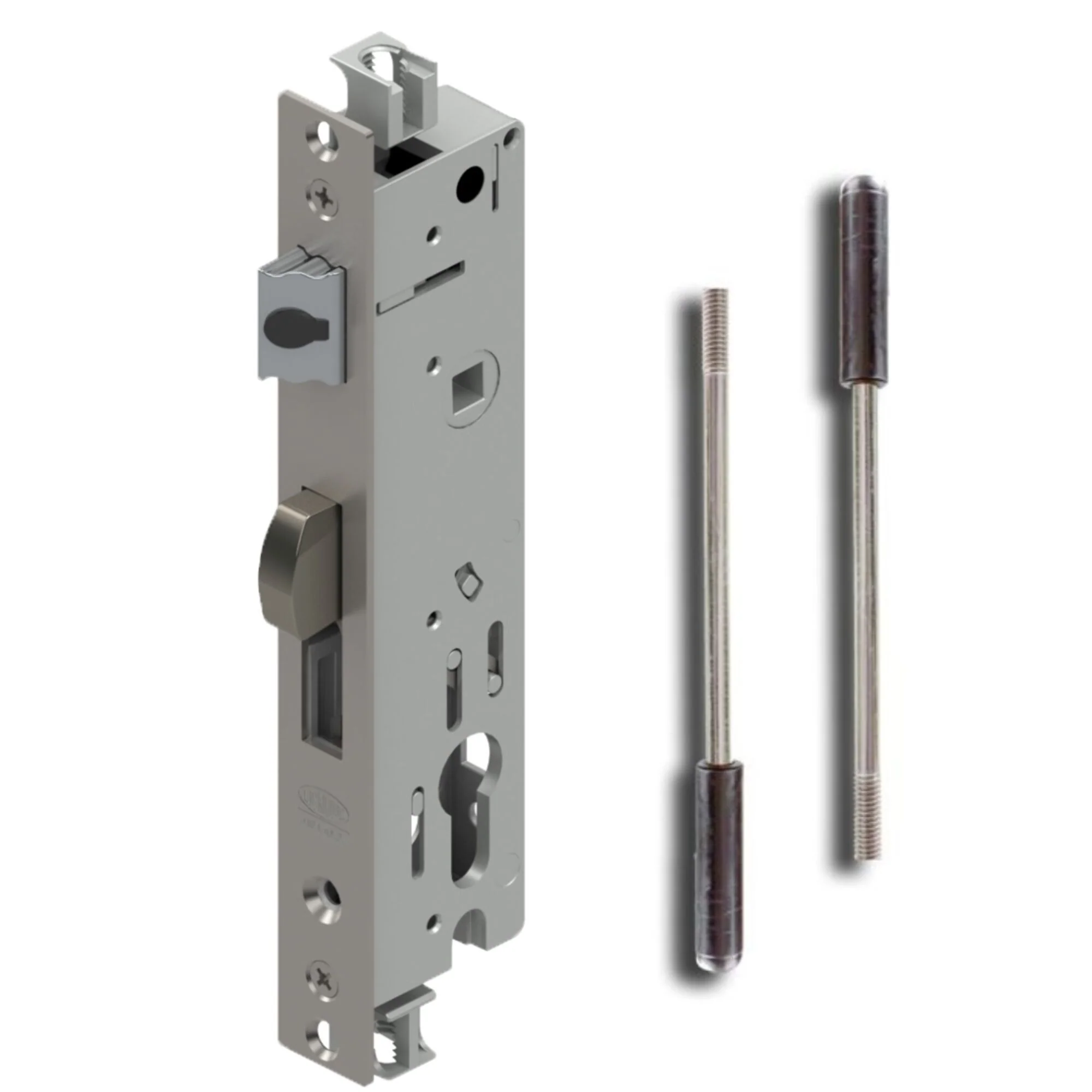

• Supports multi-point locking when used with shootbolts or remote locks (4-point configuration)

• Suitable for door thicknesses from 32 mm to 45 mm

• Compatible with a range of strike options to achieve optimal seal compression (strikes sold separately)

Available Variants

• 2 Point – 30mm Backset – Long Throw – TP (LW7130L)

• 2 Point – 40mm Backset – Long Throw – TP (LW7140L)

• 2 Point – 50mm Backset – Long Throw – TP (LW7150L)

• 4 Point – 30mm Backset – Long Throw – TP (LW7230L)

• 4 Point – 30mm Backset – Short Throw – TP (LW7230S)

• 4 Point – 30mm Backset – Short Throw – A10 (LW7230S/A10)

• 4 Point – 40mm Backset – Short Throw – TP (LW7240S)

• 4 Point – 40mm Backset – Short Throw – A10 (LW7240S/A10)
